ZyWAN User Manual Configuration Examples

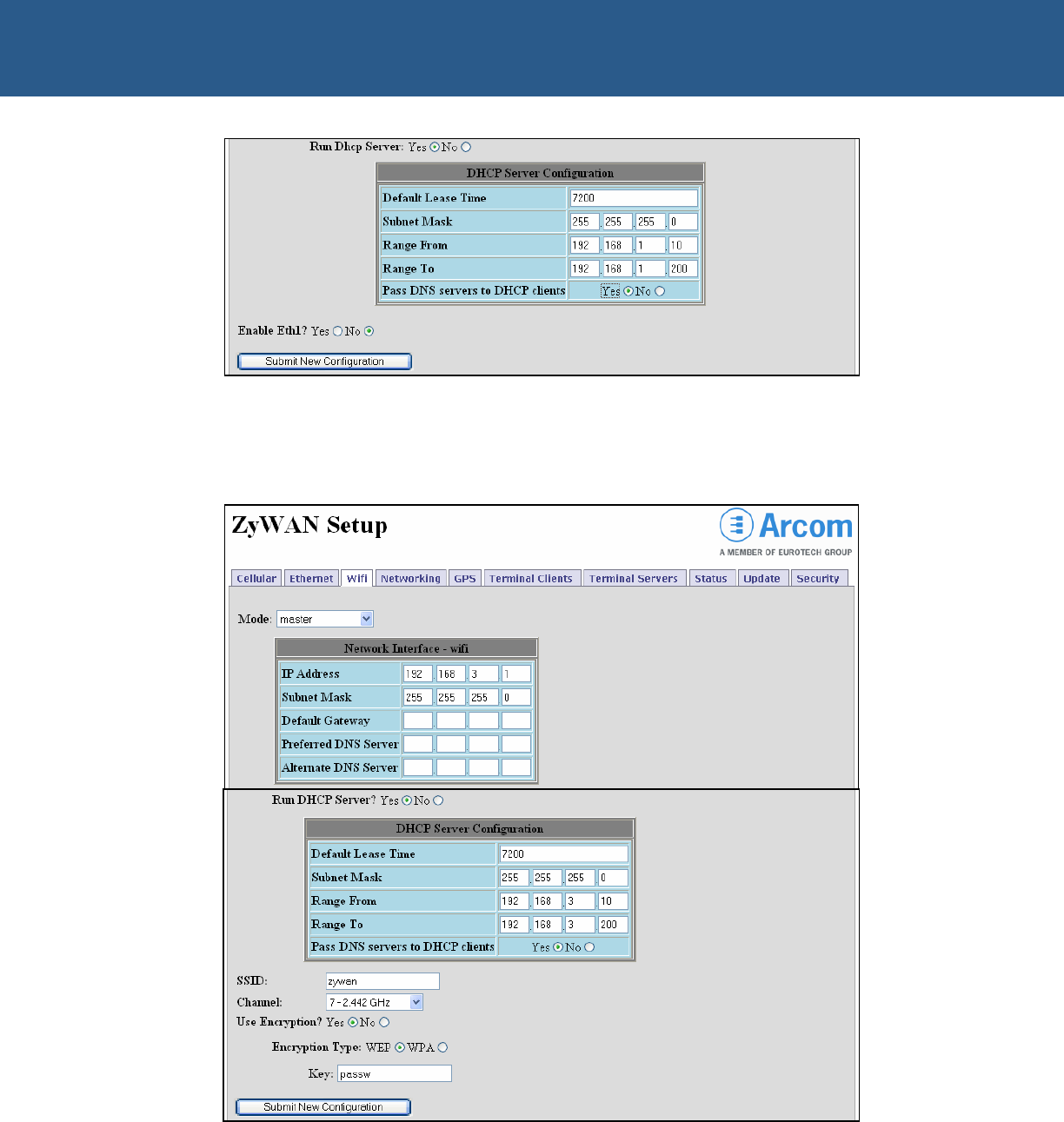

WiFi setup

No Default Gateway or DNS Server addresses should be configured, because this will

override the cellular network being the ZyWAN’s default route and obtaining its public

DNS servers from that network. The WEP encryption password is optional.

Networking setup

Port 67 (UDP) is required for the ZyWAN to act as a Default Gateway to other devices,

and port 53 (UDP) is required for it to act as a DNS server. The NAT entries allow
