Configuring the Transportal Interlock Monitor

4-20 SM-1H1.0002, Rev. 1, July 2009

2. Select “Properties,” enter the IP address data for Ethernet port ETH0 (typical) on the

TIM, and select “OK.” See Figure 4-16. The IP address data shown is typical; enter the

specific data for this TIM application.

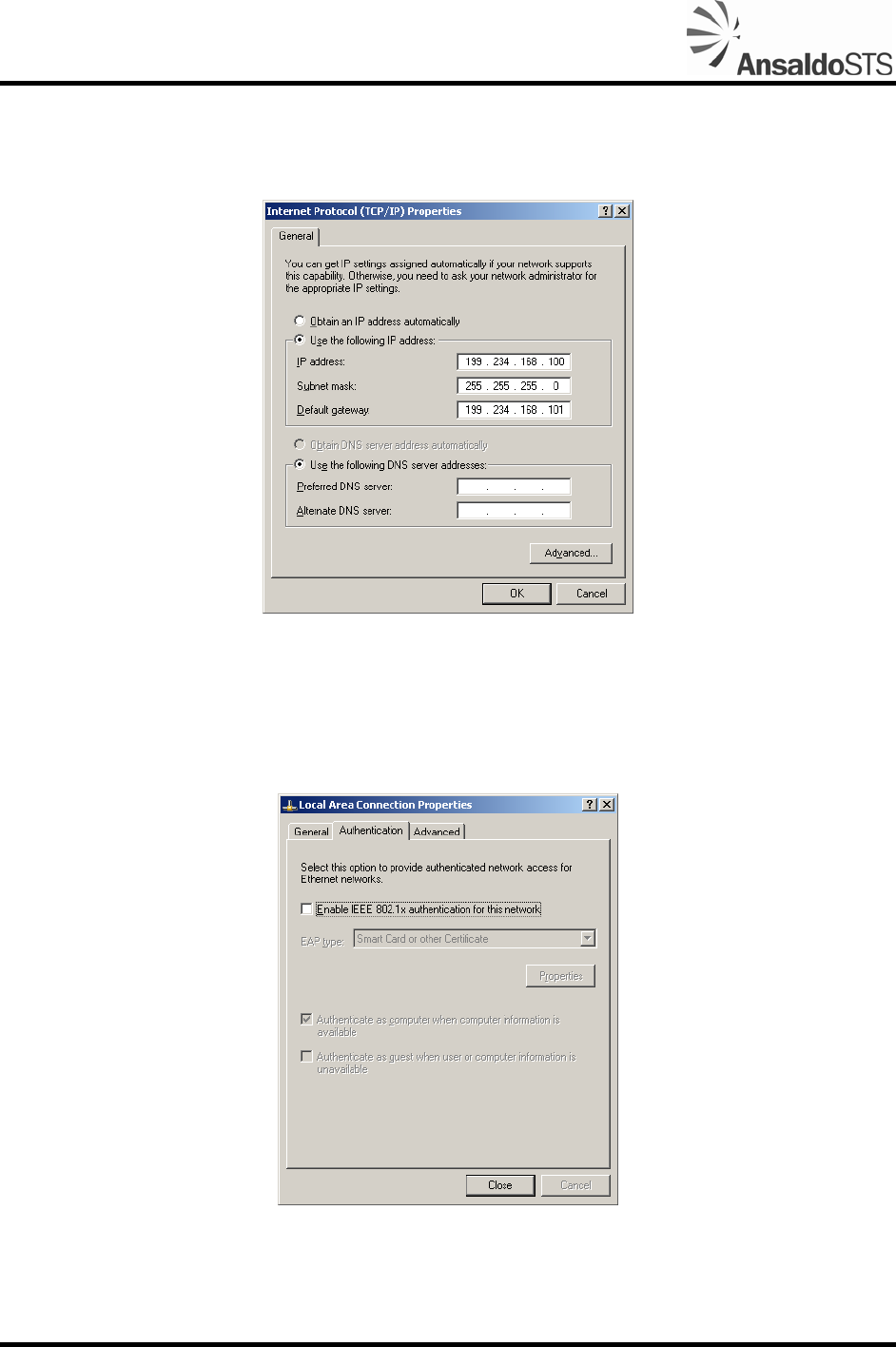

Figure 4-16. Typical Local Area Connection Properties (General)

3. Open the “Authentication” tab and deselect “Enable IEEE 802.x authentication for this

network.” See Figure 4-17.

Figure 4-17. Typical Local Area Connection Properties (Authentication)
